BD13510STU Bipolar Transistors – BJT
Manufacture: Infineon Technologies

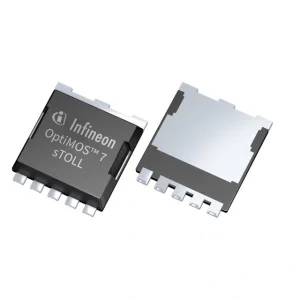

N-Channel 40 V 40A (Ta), 290A (Tj) 133W (Tc) Surface Mount PG-HSOF-5-2
Drain to Source Voltage (Vdss) | 40 V |
Current – Continuous Drain (Id) @ 25°C | 40A (Ta), 290A (Tj) |
Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
Rds On (Max) @ Id, Vgs | 0.82mOhm @ 90A, 10V |
Vgs(th) (Max) @ Id | 3V @ 60µA |
Gate Charge (Qg) (Max) @ Vgs | 78 nC @ 10 V |
Vgs (Max) | ±20V |
Input Capacitance (Ciss) (Max) @ Vds | 5410 pF @ 20 V |
Power Dissipation (Max) | 133W (Tc) |
Operating Temperature | -55°C ~ 175°C (TJ) |
Grade | Automotive |
Mounting Type | Surface Mount |
